| Place of Origin: | China |
|---|---|
| Brand Name: | NAIKE |
| Certification: | ISO |
| Model Number: | NK-FS-0003 |
| Minimum Order Quantity: | 1 litre |
| Price: | $100.00+ liters |
| Packaging Details: | carton box |
| Delivery Time: | in 7 days for 50L |
| Payment Terms: | Western Union, L/C, T/T, D/A, D/P, PAYPAL |
| Supply Ability: | 200L per month |
| Shape: | Spiral | Application: | Distillation |
|---|---|---|---|
| Material: | Stainless Steel SS304 | Product Name: | Fenske Spiral |
| Size: | 1.75*1.75mm | Classfication: | Distillation Packing, Laboratory Packing |
| Other Name: | Laboratory Packing | Usuage: | Distillation |
| Advantages: | High Efficienty | ||
| Highlight: | 1.75*1.75mm Laboratory Packing,Stainless Steel 304 Laboratory Packing,Distillation Process Laboratory Packing |
||

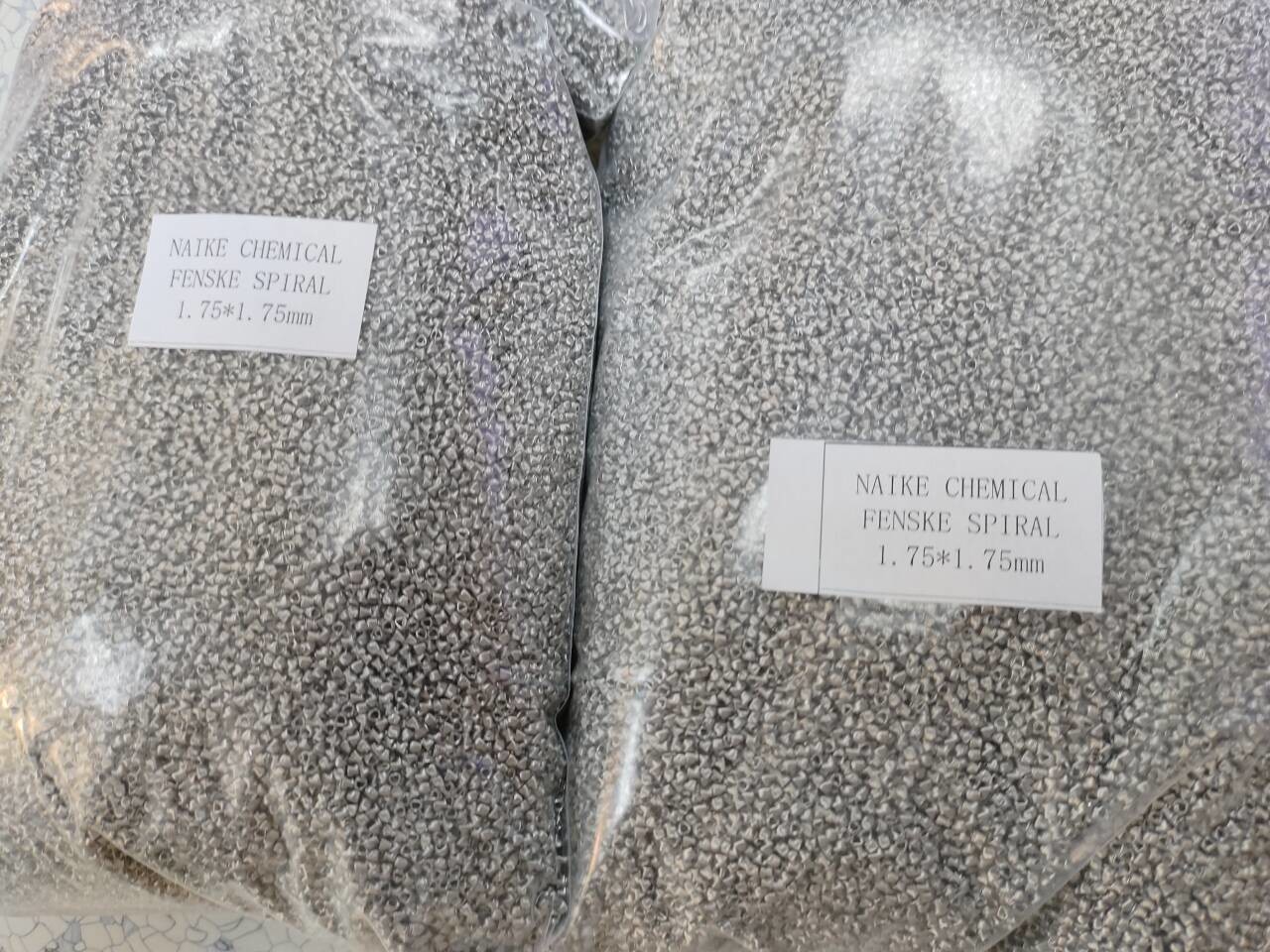

The triangular spiral filler, Fenske spiral is made of winding wire, triangular spiral filler, Fenske spiral is similar to its shape and springs, also known as the triangle spring filler. It is the difference between the spring winding circle is not round but each triangle, circle and circle the triangle between the staggered certain angle, so triangular spiral filler,
Fenske spiral packing direction from the end to see such a polygonal packing more efficient, but compared to the ring packing, the resistance slightly larger, mainly for the laboratory.
Technical data
| Specification | Tower diameter mm | Theoretical plate pcs/m | Material | Operating pressure |
| 1.75*1.75 | 50 | 60~70 | Benzene, Cl4C | Normal pressure |
| 3*3 | 18 | 50~80 | Benzene, Cl4C | Normal pressure |
| 4*4 | 50 | 25~40 | Benzene, Cl4C | Normal pressure |
| 5*5 | 50 | 20~30 | Benzene, Cl4C | Normal pressure |
| 6*6 | 82 | 14~20 | Ammonia | 3kg/cm2 absolute pressure |
| 7*7 | 82 | 11~13 | Ammonia | 3kg/cm2 absolute pressure |
| 96 | 8~10 | N-Heptance, Toluene | Normal pressure | |
| 8*8 | 82 | 10~11 | Ammonia | 3kg/cm2 absolute |

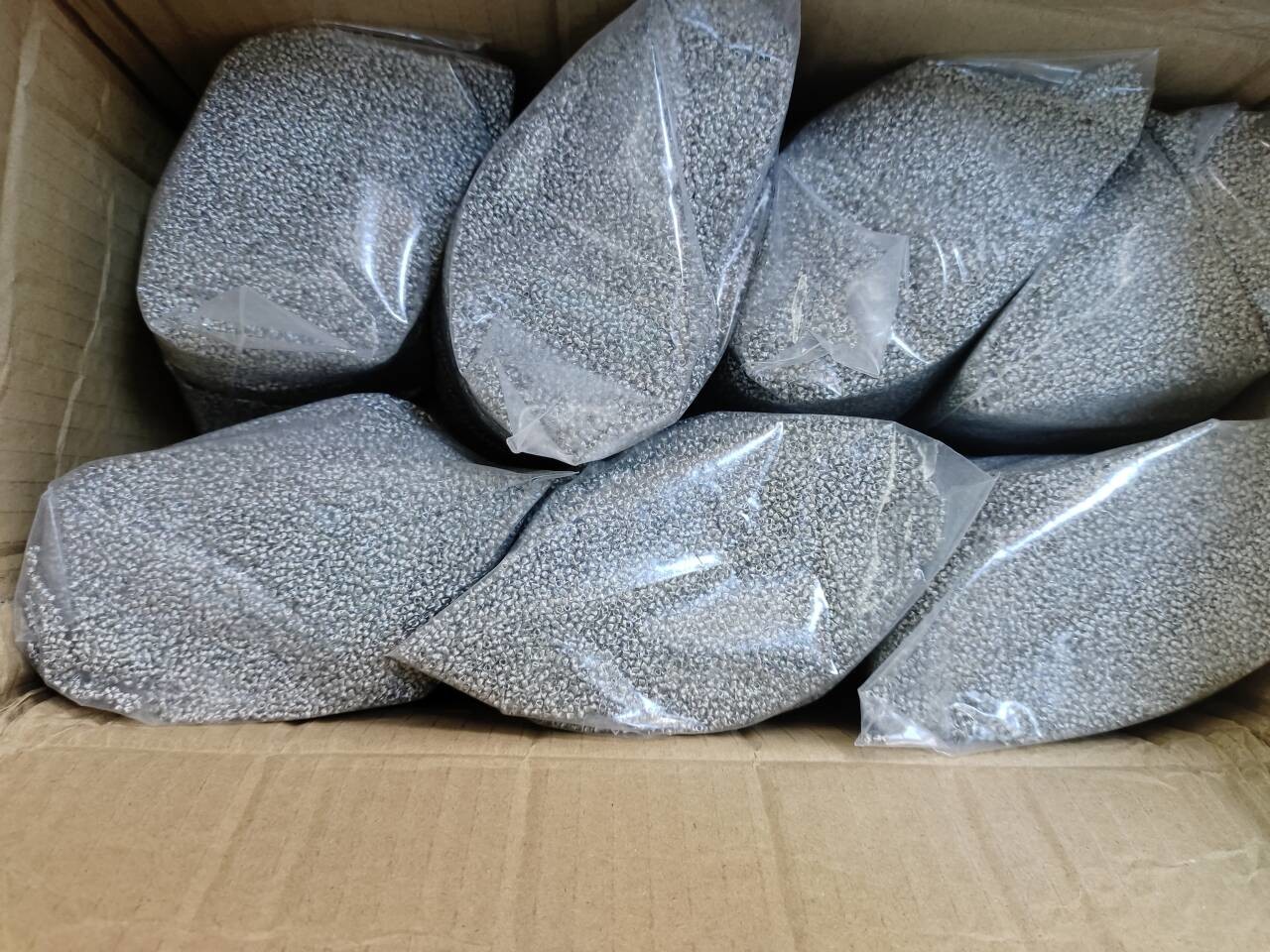

The package of fenske spiral is carton box.
We promise to reply within 24 hours.
Samples are available for checking quality.
Stock is available with regular material and sizes.
Fast and safe delivery are secured.
