| Place of Origin: | CHINA JIANGXI |
|---|---|
| Brand Name: | NKCHEM |
| Certification: | ISO9001:2008 |
| Model Number: | TP-0002 |
| Minimum Order Quantity: | 1 cubic meter |
| Price: | $180.00 - $300.00/ cubic meter |
| Packaging Details: | woven bag, jumbo bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 500 Cubic Meter/Cubic Meters per Month |
| Product Name: | TP Packing Ring | Classification: | Tower Packing, Random Packing, Column Packing, Air Scrubber Packing |
|---|---|---|---|
| Processing Service: | Moulding, Cutting | Color: | White |
| Size: | 25mm, 38mm, 50mm | Material: | PP |
| Application: | Fertilizer Industry, Urea Plant | ||
| Highlight: | 38mm Plastic Net Tower Packing Ring,50mm Plastic Net Tower Packing Ring,PP Plastic Net Tower Packing Ring |
||
PP Plastic Net Tower Packing Ring 25mm, 38mm, 50mm for Urea Unit in Fertilizer Industry
Plastic Net Tower Packing Ring
Plastic Net Ring Packing is a mesh ring filler, its outer diameter equal to height, because plastic net tower packing ring wall has many square hole, so it called Net Ring. Depending on this specical structure, when liquid flows down wall surface, it will devide into many liquid interface. Each interface is like a filte ring membrane. When gas touching this interface, the particle will be separated by this inferface. The filler has the advantages of simple structure, light weight and not easy to be damaged, low pressure drop, high flux, high efficiency, low cost, is still widely used in bsorption tower, sulfuric acid tower, cooling tower and water treatment etc. It is widely used in packed bed columns for fertilizer industry.
| Packing of PP Net Tower Packing Ring | |||
| 1 cubic meter Jumbo bag | |||
| Other packing is available upon your request. |
| Technical Parameter of PP Net Tower Packing Ring | ||||||||
| D×H×δ mm | Specific area m2/m3 | Void Rate % | Bulk Number g/m3 | Package Density (kg/m3) | F factor m-1 | |||
| 25*25*1.0 | 210 | 90 | 48500 | 88 | 86 | |||
| 38*38*1.2 | 150 | 91 | 15200 | 70 | 90 | |||
| 50*50*1.5 | 105 | 92 | 6500 | 65 | 92 | |||
Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..
| Physical & Chemical Properties of PP Net Tower Packing Rings | ||||||||
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF | ||
| Density(g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 | ||
| Operation Temp(℃) | 90 | >100 | >120 | >60 | >90 | >150 | ||
| Chemical Corrosion resistance | Good | Good | Good | Good | Good | Good | ||
| Compression Strength(MPa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 | ||

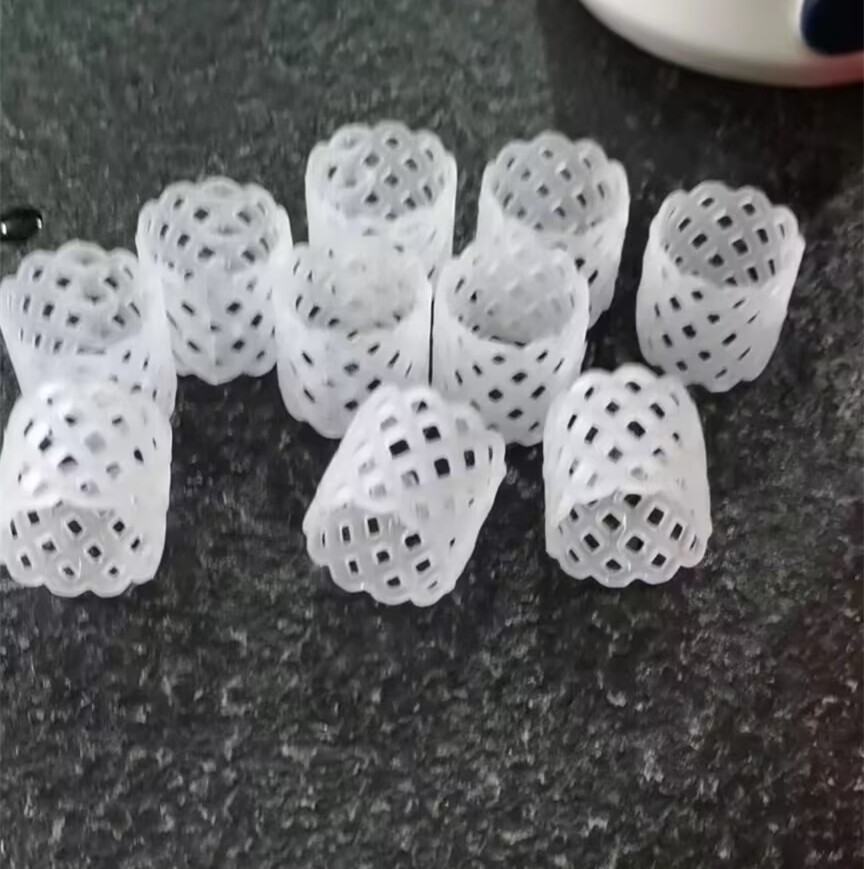

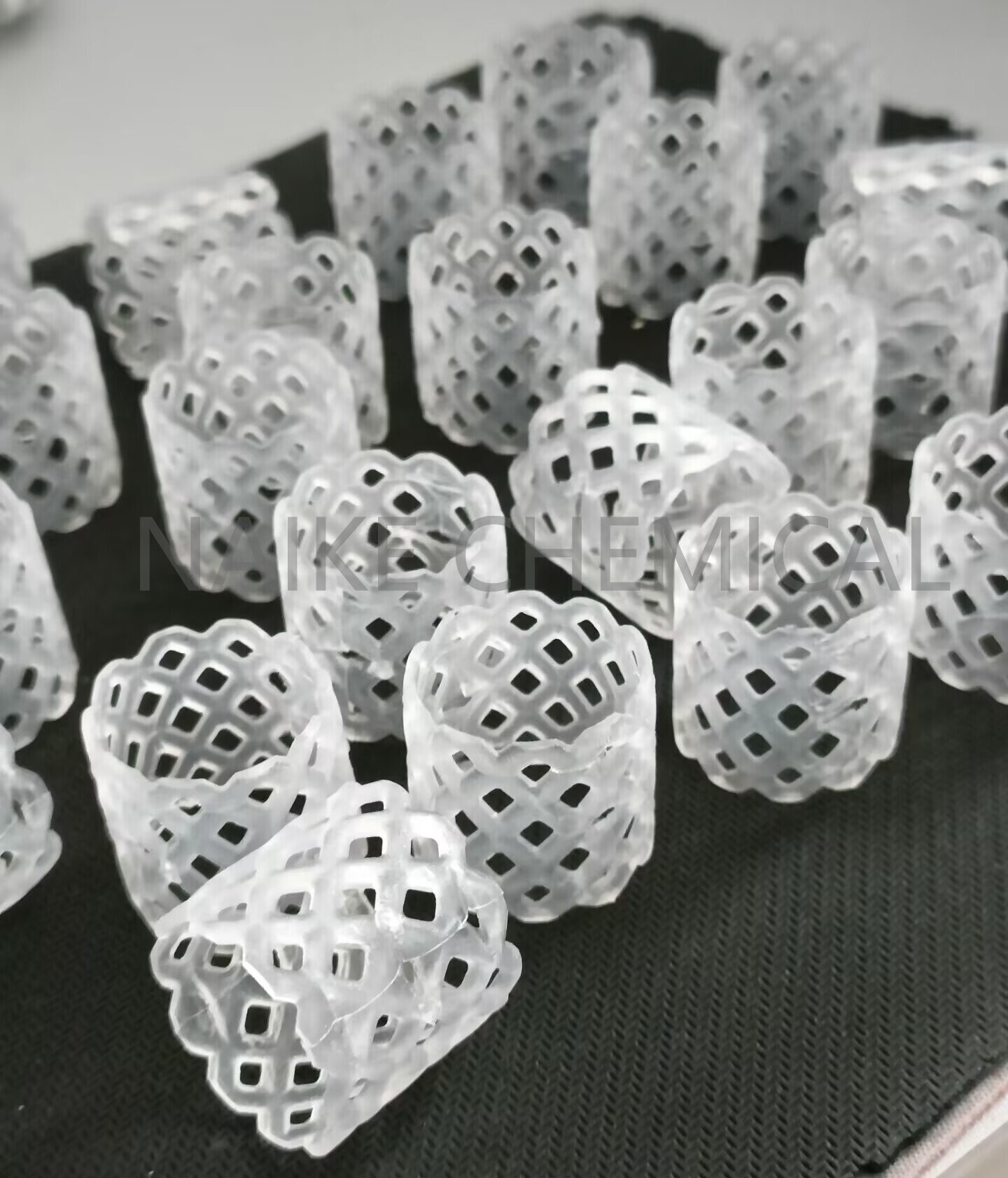

Product photos

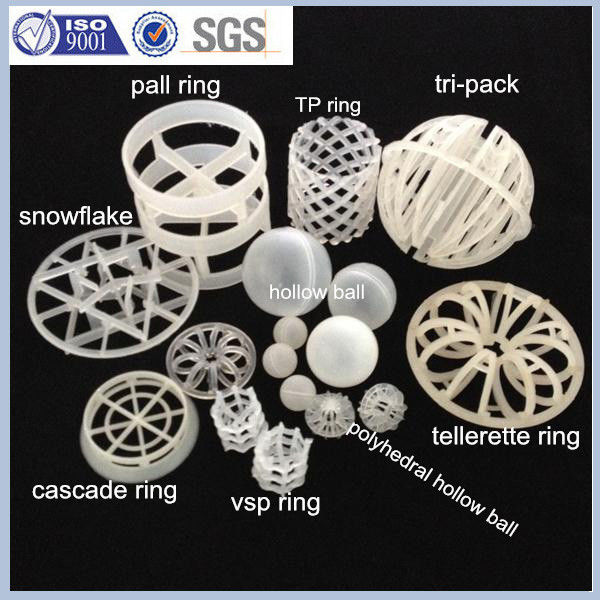

Other plalstic random packing
1. We promise to reply your inquiry within 24hours.
2. OEM & ODM service for your unique idea with absolute convenience.
3. Experienced salesmen with professional industry knowledge.
4. We value our business credit, promise to keep your company information confidential
1.Can I negotiate the price?
Yes, we may consider the discounts for mixed goods or bulk orders of individual products
2.How long for the lead time?
In generally, it only need 7-15 workdays.
3.Can I get the sample for free?
Yes,500g sample is free and buyer should pay for the freight.
4.Can I visit your factory before make the order ?
Yes, warmly welcome. Our factory is located in No.91 Anyuan West street, Pingxiang City, Jiangxi Province. Before you come, please let us know your schedule, your arriving time, we can come to pick you up.
5. What information should I offer to you if I want to know the price?
- Application/Usage
- Size
- Material
- Quantities you need;
- Package term
- Delivery time
- Payment term:FOB or CIF
- Destination.
