| Place of Origin: | CHINA |
|---|---|
| Certification: | ISO |
| Model Number: | NK-PTP |
| Minimum Order Quantity: | 1 cubic metre |
| Price: | depends on quantity |
| Packaging Details: | woven bag |
| Delivery Time: | 10 days for one 20GP container |
| Payment Terms: | L/C, D/P, T/T, Western Union, paypal |
| Supply Ability: | 300m3 per month |
| Product Name: | Tri Pack | Material: | PP |
|---|---|---|---|
| Diameter: | 50mm | Application: | Adsorption, Scrubber |
| Classfication: | Tower Packing, Random Packing, Column Packing | ||
| Highlight: | Pharmaceutical Industry Plastic Random Packing,Plastic Random Packing Tri-Packs,Hydrogen Peroxide Scrubber Plastic Random Packing |
||
Plastic Random Packing Tri-Packs for Hydrogen Peroxide Scrubber in Pharmaceutical Industry
Product description
Plastic multi-aspect hollow ball is composed of two hemispheres which will form into a ball. And each hemisphere consists of a number of half fan-shaped leaves, the upper and lower leaves in a staggered arrangement. Its surface area is larger than other spherical fillers. It can be used in sewage treatment, desulfurization of CO2 in power plant, desulfuration and purified water tower packing. Plastic multi-aspect hollow ball is a new type of high-efficiency tower packing applied in water treatment equipment. The domestic power, chemical industry, papermaking and environmental protection industries have made use if in the equipments of desulfurization carbon and acid, oily-water separating, seawater desalination, purified and waste water treatment. The design concept is advanced and the structure is reasonable. This product has the virtue of light weight, wide free space, small wind resistance, and good surface hydrophilic, big full wet surface area and convenient filling in the equipment and sound usage effect.
Product advantages:
*high gas velocity, multiple blades and little resistance
*The character of high specific surface can well solve the exchange of gas and liquid.
*high productive power , low resistance and great turn-down ratio
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Main technical index:
| Specification (mm) | Surface area (m²/m³) | Free volume (%) | Bulk density (kg/m³) | Number per m³ |
| ø25 | 460 | 84 | 145 | 64000 |
| ø38 | 325 | 87 | 125 | 25000 |
| ø50 | 236 | 90 | 105 | 11500 |
| ø76 | 150 | 92 | 90 | 3000 |
Note: The above data are reference to material PP.
Package info
| package | volume | volume/bag | |
| 20GP container | woven bag | 25-28m3 | 0.1-0.3m3 |
| 40GP container | woven bag | 52-55m3 | 0.1-0.3m3 |
| 40HQ container | woven bag | 60-65m3 | 0.1-0.3m3 |

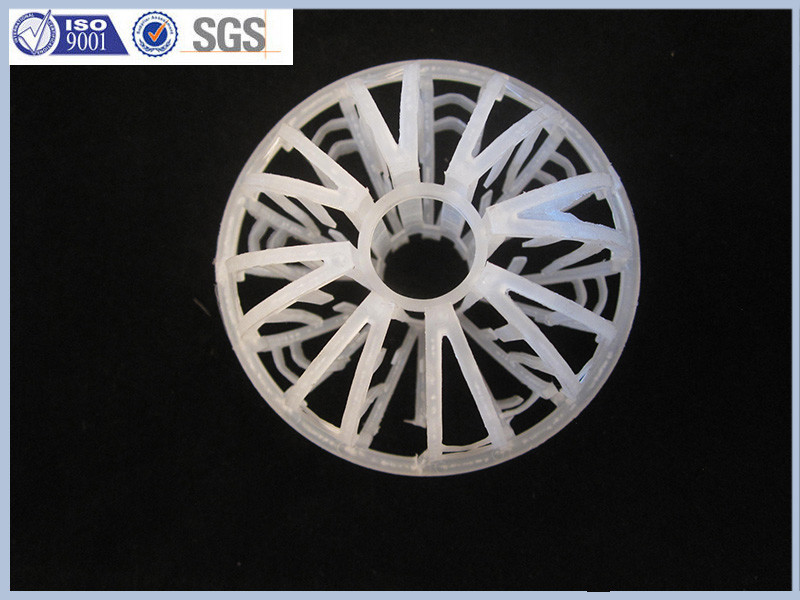

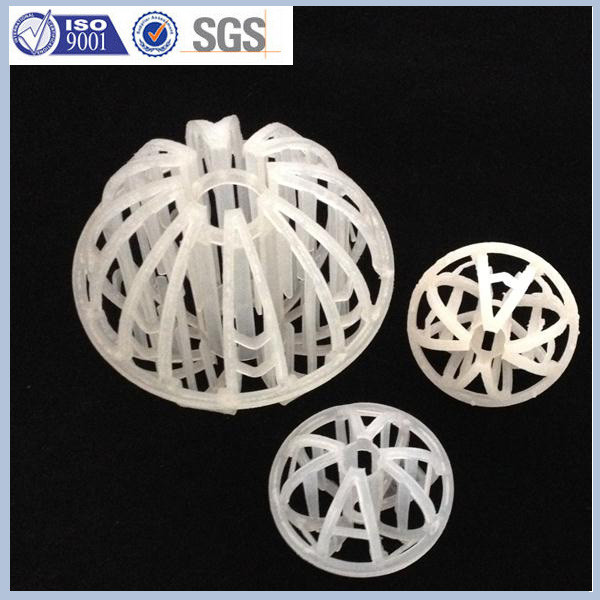

Product photo
Plastic Material: 100% virgin PP granules
Production and shipment
Other plastic random packing products
