| Place of Origin: | CO |
|---|---|
| Brand Name: | NAIKE CHEMICAL |
| Certification: | ISO9001:2015 |
| Model Number: | HR002 |
| Minimum Order Quantity: | 1m3 |
| Price: | usd100-usd400 |
| Packaging Details: | woven bag, jumbo bag |
| Delivery Time: | 5-8 working days, depends on quantity |
| Payment Terms: | L/C, T/T, Western Union, Paypal, Credit Card |
| Supply Ability: | 1500m3 per month |
| Name: | Heilex Ring | Material: | PP, PVC, CPVC, PE, PVDF, RPP, PTFE |
|---|---|---|---|
| Size: | 25mm, 38mm, 50mm, 76mm, 100mm | Classification: | Tower Packing, Random Packing, Column Packing, Air Scrubber Packing |
| Application: | Scrubber | Package: | Woven Bag, Jumbo Bag |
| Highlight: | 76mm Plastic Random Packing,Scrubber Packing Plastic Random Packing,Heilex Ring Plastic Random Packing |
||

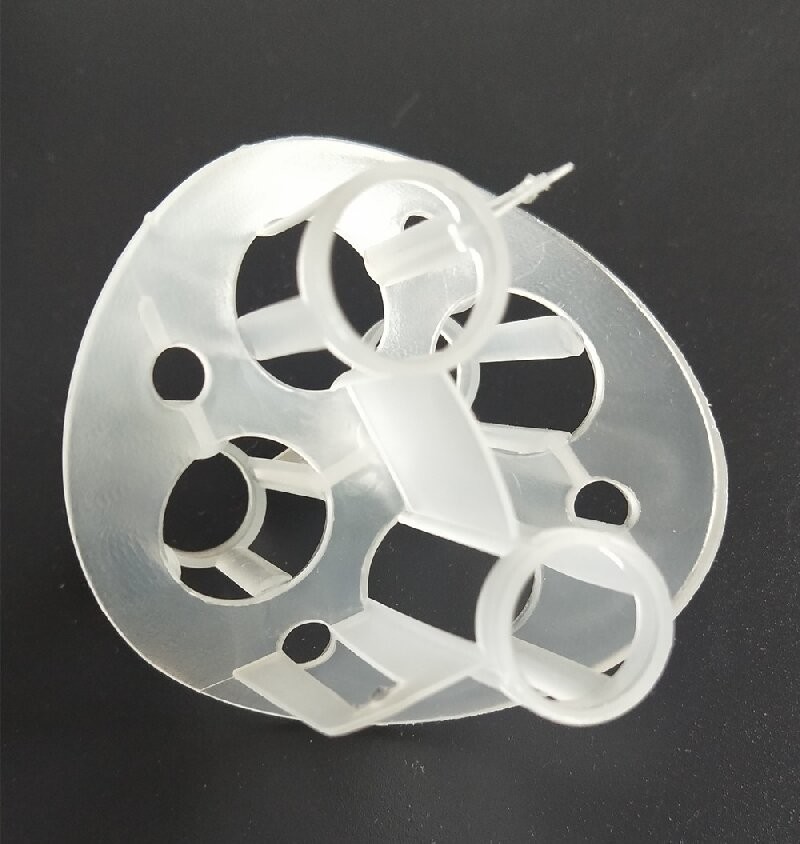

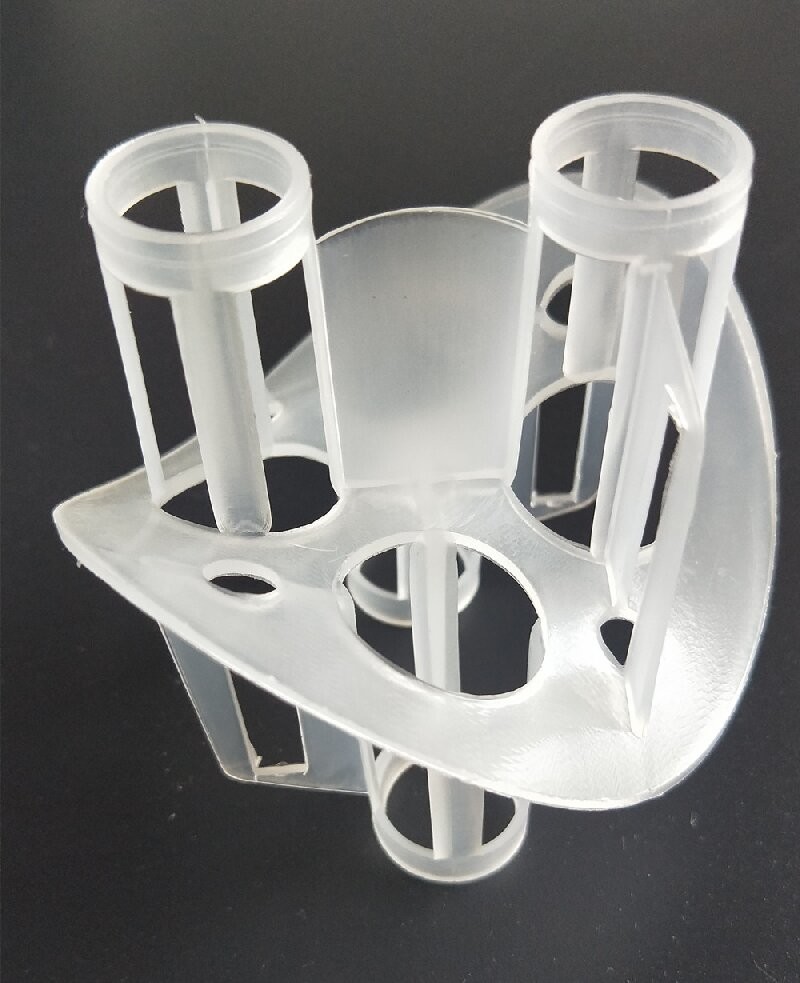

Scrubber Packing Plastic Random Packing Heilex Ring 25mm, 38mm, 50mm, 76mm, 100mm
Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..
Physical & chemical properties of plastic random packing
| Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
|
Operation Temp. (Degree C) |
90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 |
>10.0 |
25mm 50mm 95mm Plastic Random Packing Plastic Heilex Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
